How Does It Work?#

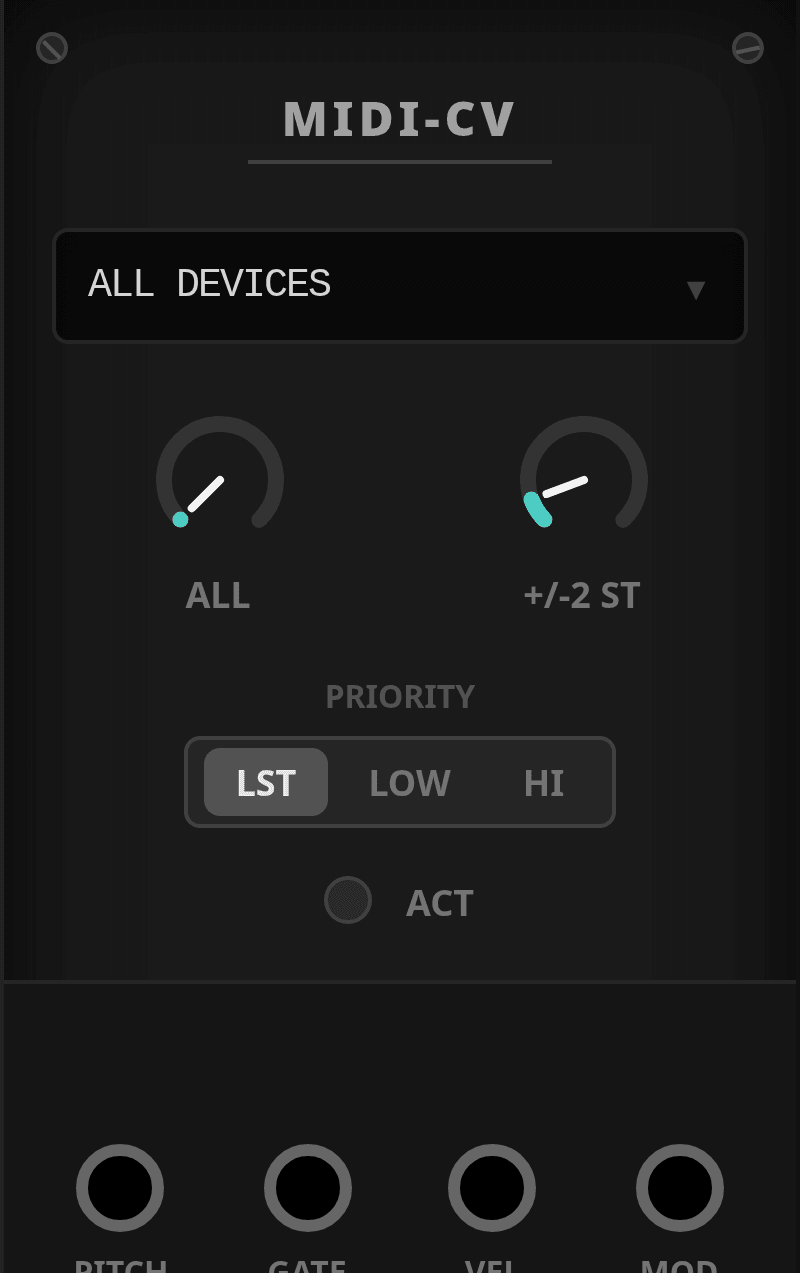

MIDI-CV is a monophonic bridge from MIDI into modular control voltages, converting note input into Pitch, Gate, Vel, and Mod outputs with device filtering, channel selection, note priority, and pitch bend support.

CLICK TO ENLARGE

Quick Overview#

• It listens to one MIDI device or All Devices.
• It can listen to one MIDI channel or ALL.
• It outputs a single monophonic note stream.
• It follows pitch bend and mod wheel (CC1) messages.
• It lets you choose which held note wins with Priority.

Inputs And Outputs#

Port	Type	What It Does
Pitch	CV	1V/oct pitch output. C4 is 0V, and pitch bend is added directly to this output.
Gate	Gate	Goes high while the selected note is active. Output is a standard unipolar gate (0V or 5V).
Vel	CV	Note-on velocity as unipolar CV (0..5V).
Mod	CV	Mod wheel (CC1) as unipolar CV (0..5V).

Controls Reference#

Control	Values	Default	Behavior
Device	All Devices or one MIDI input	All Devices	Filters incoming MIDI by device before note selection.
Channel	0..16	0	0 means listen to all channels. 1..16 listen to one specific channel.
Bend	1..12 semitones	2	Sets the pitch-bend range applied to Pitch.
Priority	LST, LOW, HI	LST	Chooses which held note controls the mono output when notes overlap.

Note Priority And Gate Behavior#

• LST follows the most recently pressed note.
• LOW follows the lowest held note.
• HI follows the highest held note.
• Releasing all notes drops Gate low, but the pitch output stays at the last played voltage until a new note arrives.

MIDI Filtering And Controller Handling#

• Device filtering happens before channel filtering.
• Changing Device or Channel clears the current held-note state, drops the gate, and resets the mod output.
• Pitch bend is applied in real time to the active note and scaled by Bend.
• Mod is a shared controller output for the whole module, not a per-note value.

Patch Ideas#

• Patch Pitch and Gate into a classic mono synth voice.
• Use Vel to modulate envelope amount, VCA level, or filter cutoff.
• Use Mod as a live performance CV for vibrato depth, fold amount, or delay mix.
