How Does It Work?#

S&H samples either internal noise or an external voltage whenever it sees a trigger edge, then holds that value until the next trigger arrives.

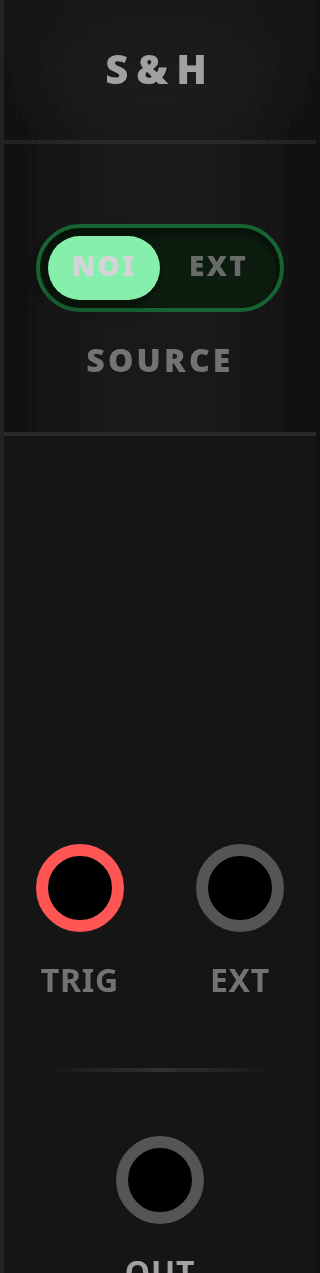

CLICK TO ENLARGE

Quick Overview#

• Trig clocks the sampling action.
• Source chooses between internal noise and the external input.
• Out holds the last sampled value indefinitely.
• The module starts at 0 until the first trigger is received.

Inputs And Outputs#

Port	Type	What It Does
Trig	Trigger input	Samples on a rising edge.
Ext	CV input	External value source when Source is set to EXT.
Out	CV output	The currently held value.

Controls Reference#

Control	Values	Default	Behavior
Source	NOI, EXT	NOI	Selects the sampled source. NOI uses the internal noise generator; EXT uses the Ext jack.

Behavior Notes#

• Triggering is edge-based: the module samples only when Trig crosses upward through 0.5.
• In NOI mode, the sampled value comes from the internal white-noise source and is scaled to the standard bipolar CV range.
• In EXT mode, the held value is the exact voltage present at Ext on the trigger sample.
• Between triggers, Out stays fixed.
