How Does It Work?#

Audio Input brings live stereo audio from your microphone or interface into the rack and lets you trim the incoming level before patching it elsewhere.

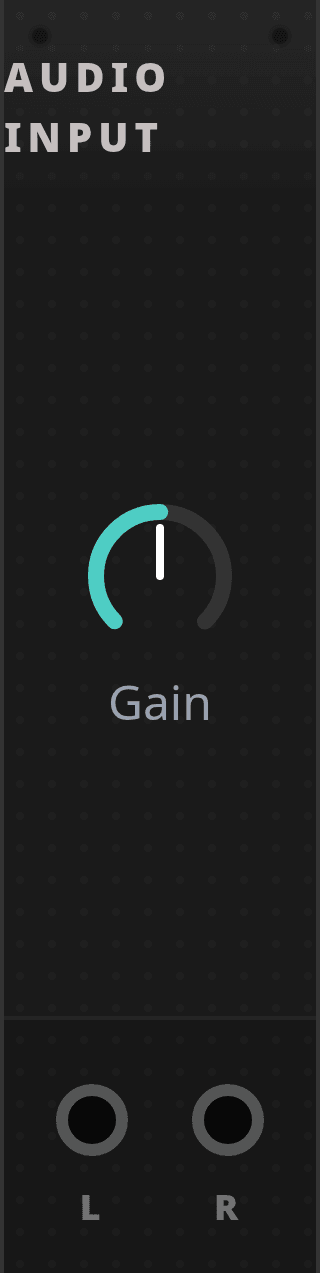

CLICK TO ENLARGE

Quick Overview#

• Audio Input is a hidden system I/O module rather than a normal sound source.
• It has one Gain control and two audio outputs.
• L and R carry the incoming stereo channels independently.
• If no input audio is available, the module outputs silence.

Inputs And Outputs#

Port	Type	What It Does
L	Audio output	Left channel from the host audio input.
R	Audio output	Right channel from the host audio input.

Controls Reference#

Control	Range	Default	Behavior
Gain	0..2	1	Scales the incoming stereo signal before it leaves the module.

Behavior Notes#

• There are no patchable inputs on the panel. The signal source is your configured hardware input.
• Gain is smoothed, so level changes are not applied as abrupt jumps.
• The module preserves stereo separation: left stays left and right stays right.
• If the input buffer runs empty, both outputs fall back to 0.
