How Does It Work?#

Audio Output is the final destination for your patch. It accepts stereo or mono audio, applies final output conditioning, and sends the result to your speakers or headphones.

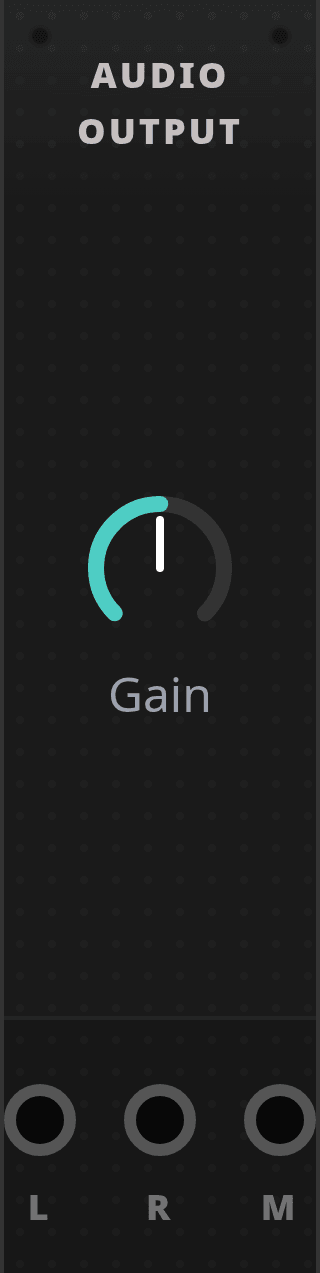

CLICK TO ENLARGE

Quick Overview#

• Audio Output is the main rack output module.
• It accepts L, R, and M audio inputs.
• The M input duplicates one mono signal to both speakers.
• A single Gain knob trims the final output level.

Inputs And Outputs#

Port	Type	What It Does
L	Audio input	Left program input.
R	Audio input	Right program input.
M	Audio input	Mono program input. When patched, it is sent to both left and right outputs.

Controls Reference#

Control	Range	Default	Behavior
Gain	0..2	1	Sets the final output level before the signal is sent to the hardware output.

Behavior Notes#

• If M is connected, that mono signal is copied to both output channels.
• If M is not connected, L and R are processed independently.
• The output stage applies signal safety conditioning before playback: sanitizing invalid values, soft clipping, DC blocking, and final limiting.
• Unconnected stereo sides stay silent rather than being auto-filled from the other side.
