How Does It Work?#

Clock Mult listens to an incoming clock, estimates its period, and generates faster synchronized subdivisions at x1, x2, x4, x8, x16, and x32, each with separate trigger and gate outputs.

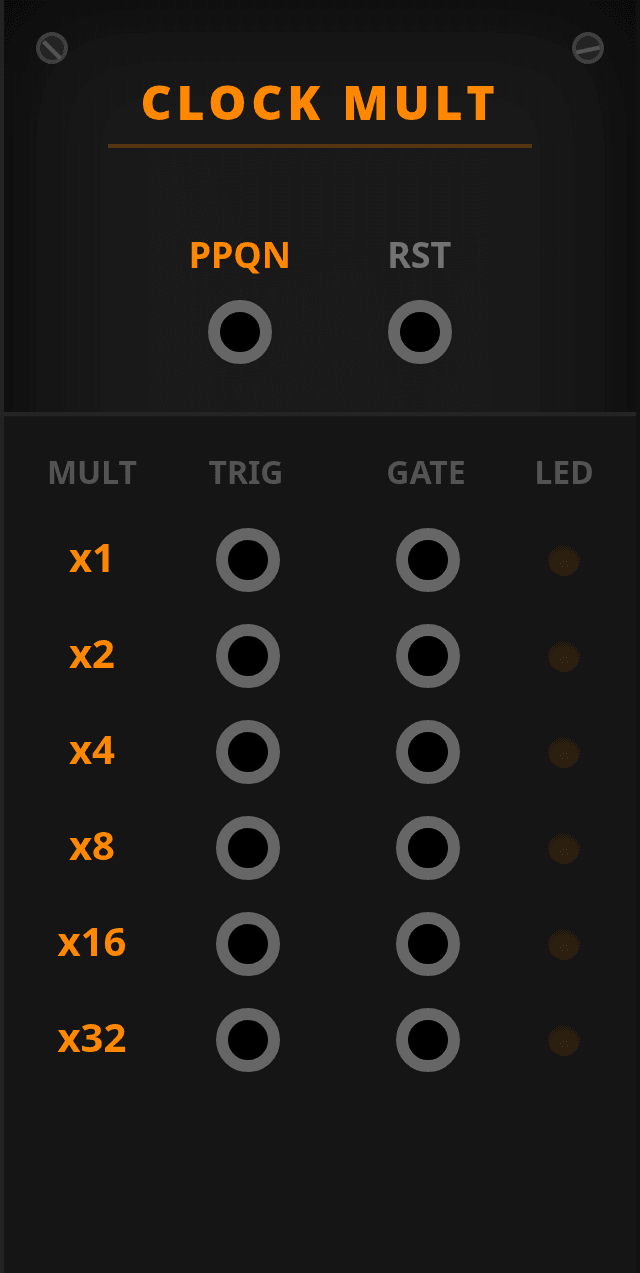

CLICK TO ENLARGE

Quick Overview#

• It accepts one incoming PPQN clock plus RST.
• It generates six multiplication lanes.
• Every lane has both a trigger output and a gate output.
• There are no user parameters; the module is driven entirely by the incoming clock.

Inputs And Outputs#

Port	Type	What It Does
PPQN	Clock	Incoming master clock used as the timing reference.
RST	Trigger	Clears the module's tempo tracking and phase state.
x1 T ... x32 T	Clock	Trigger outputs for each multiplication lane.
x1 G ... x32 G	Gate	Matching gate outputs for each multiplication lane.

How The Multiplier Locks#

Clock Mult does not just count pulses. It measures the spacing between incoming clock edges and uses that estimate to predict the subdivisions between them.

That has a few practical consequences:

• x1 responds immediately to the incoming clock.
• The faster multiplied lanes need a valid period estimate, so they become reliable after the module has seen enough clock edges to measure the incoming tempo.
• Every new incoming clock edge re-aligns the internal phases so the multiplied outputs stay locked to the master clock.

Trigger And Gate Behavior#

• Trigger outputs are short pulses at each multiplied timing point.
• Gate outputs run at a 50% duty cycle for each multiplication lane.
• If the incoming clock disappears for long enough, the module drops out of its valid locked state and the generated subdivisions stop until it can measure the timing again.

Reset Behavior#

• RST clears the learned tempo and all phase accumulators.
• After a reset, the module has to learn the incoming period again from fresh clock pulses.
• This is useful when you want a hard resync after a transport restart or after changing the upstream clock source.

Patch Ideas#

• Use x2 or x4 to derive faster sequencer clocks from a slower master pulse.
• Feed multiplied triggers into percussion envelopes while keeping slower gates for larger phrase structure.
• Pair Clock Mult with Clock Div to create dense local subdivisions and slower structural resets from the same source clock.
