How Does It Work?#

Attenuator scales a single incoming voltage from zero to unity, then optionally clamps the result to a bipolar ±5V or ±10V range.

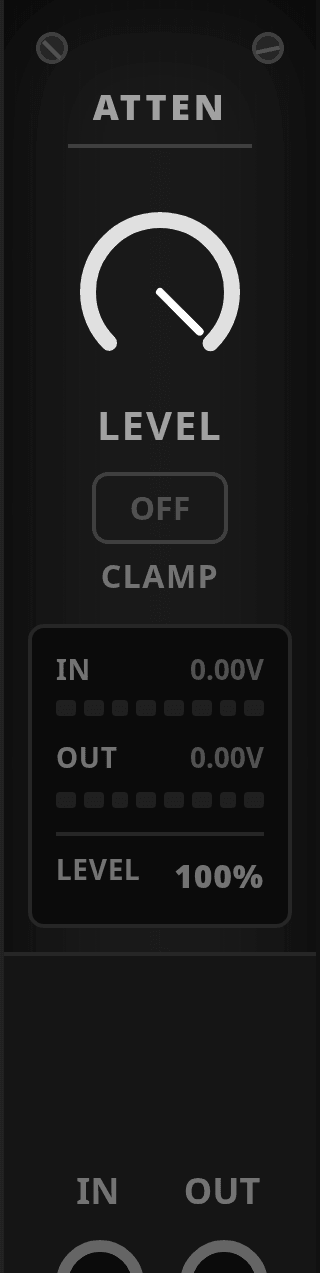

CLICK TO ENLARGE

Quick Overview#

• One In jack feeds one Out jack.
• Level only attenuates. At 1.0, the module is unity gain.
• Clamp can stay OFF or limit the output to ±5V or ±10V.

Inputs And Outputs#

Port	Type	What It Does
In	Multi	Accepts any voltage signal you want to scale.
Out	Multi	Sends the attenuated result after optional clamping.

Controls Reference#

Control	Values	Default	Behavior
Level	0..1	1	Sets the amount of attenuation. 1 is unchanged level, 0 is silence / 0V.
Clamp	OFF, 5V, 10V	OFF	Applies no limit, ±5V, or ±10V limiting to the output.

Behavior Notes#

• If In is unpatched, the output is 0V.
• Clamping happens after the level stage.
• Level changes are smoothed, so knob moves do not step abruptly.

Typical Uses#

• Tame a modulation source before it hits a sensitive destination.
• Reduce audio or CV level without changing polarity.
• Keep a signal inside ±5V or ±10V when patching into downstream modules.
