How Does It Work?#

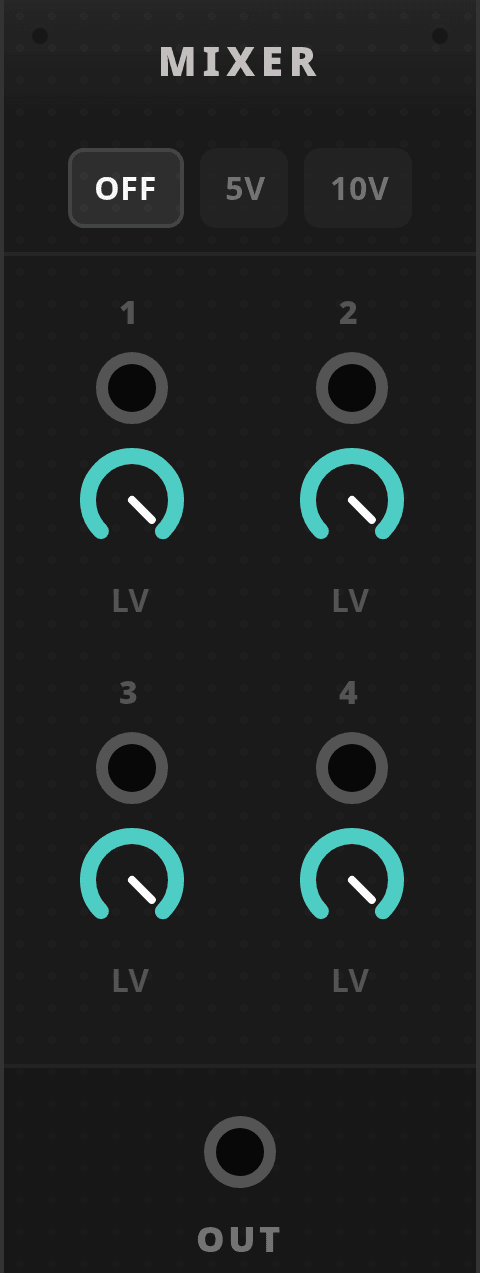

Mixer sums up to four incoming voltage signals into one output, with an independent level control for each channel and optional output clamping.

CLICK TO ENLARGE

Quick Overview#

• Four inputs feed one summed output.
• Each input has its own LV control.
• Clamp can be OFF, 5V, or 10V on the final mix output.

Inputs And Outputs#

Port	Type	What It Does
1	Multi	Channel 1 input.
2	Multi	Channel 2 input.
3	Multi	Channel 3 input.
4	Multi	Channel 4 input.
Out	Multi	Summed output after channel levels and optional clamp.

Controls Reference#

Control	Values	Default	Behavior
LV 1	0..1	1	Sets the contribution of input 1.
LV 2	0..1	1	Sets the contribution of input 2.
LV 3	0..1	1	Sets the contribution of input 3.
LV 4	0..1	1	Sets the contribution of input 4.
Clamp	OFF, 5V, 10V	OFF	Limits the final summed output to no clamp, ±5V, or ±10V.

Behavior Notes#

• Unpatched channels contribute 0V.
• Channel levels only attenuate; they do not boost above unity.
• With Clamp OFF, summed voltages can exceed normal modular ranges.

Typical Uses#

• Mix several modulation sources into one destination.
• Combine audio signals before monitoring or further processing.
• Build weighted CV blends with the four level controls.
