How Does It Work?#

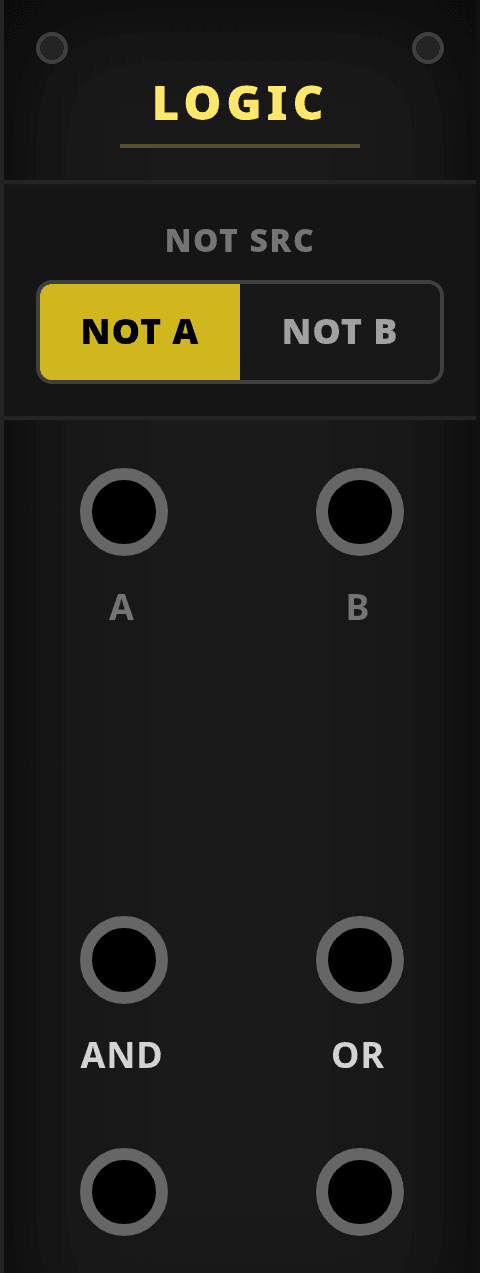

Logic compares two gate inputs and produces AND, OR, XOR, and NOT outputs at the same time, with the NOT output switchable between input A and input B.

CLICK TO ENLARGE

Quick Overview#

• Two gate inputs: A and B.
• Four simultaneous outputs: AND, OR, XOR, and NOT.
• The NOT SRC switch decides whether NOT inverts A or B.

Inputs And Outputs#

Port	Type	What It Does
A	Gate	First logic input.
B	Gate	Second logic input.
AND	Gate	High only when both A and B are high.
OR	Gate	High when either input is high.
XOR	Gate	High when exactly one input is high.
NOT	Gate	Inverts the selected input source.

Controls Reference#

Control	Values	Default	Behavior
NOT SRC	NOT A, NOT B	NOT A	Chooses which input feeds the inverter.

Behavior Notes#

• All four outputs are available at once.
• Unpatched inputs are treated as low.
• The module works on gate state, not analog level shaping.

Typical Uses#

• Derive new rhythms from two clocks or trigger streams.
• Use XOR for difference patterns and syncopation.
• Flip either source with NOT before sending it to envelopes, switches, or sequencers.
