How Does It Work?#

Multiple duplicates one incoming voltage signal to four separate outputs so the same source can drive several destinations at once.

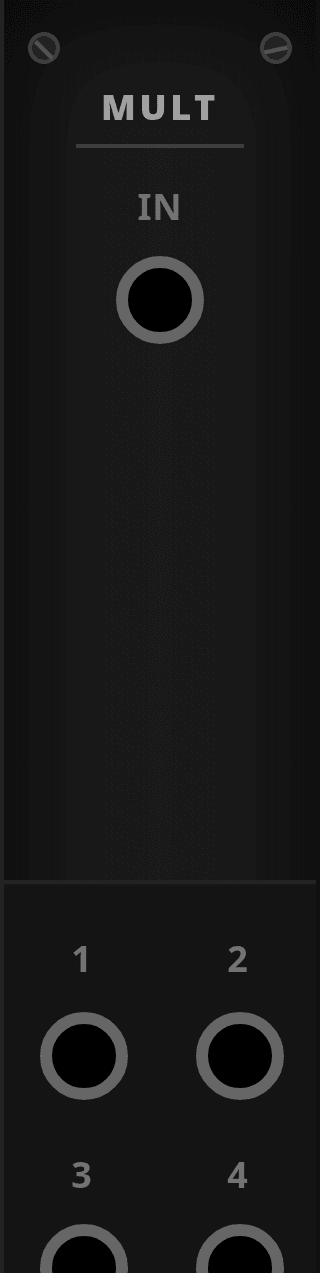

CLICK TO ENLARGE

Quick Overview#

• One In jack.
• Four identical outputs.
• No controls and no signal processing beyond copying the input.

Inputs And Outputs#

Port	Type	What It Does
In	Multi	Source signal to duplicate.
Out 1	Multi	Copy of the input signal.
Out 2	Multi	Copy of the input signal.
Out 3	Multi	Copy of the input signal.
Out 4	Multi	Copy of the input signal.

Controls Reference#

This module has no controls.

Behavior Notes#

• If In is unpatched, all outputs stay at 0V.
• All four outputs receive the same signal at the same time.
• The ports are multi-role, so the module is useful for audio, CV, gates, clocks, and triggers.

Typical Uses#

• Split one pitch CV to several oscillators.
• Send one clock or trigger stream to multiple rhythm modules.
• Duplicate a modulation source without repatching the original cable.
