How Does It Work?#

Scope is a compact two-channel oscilloscope for monitoring audio or CV, with selectable channel view, time window, gain, trigger level, sync mode, and span presets.

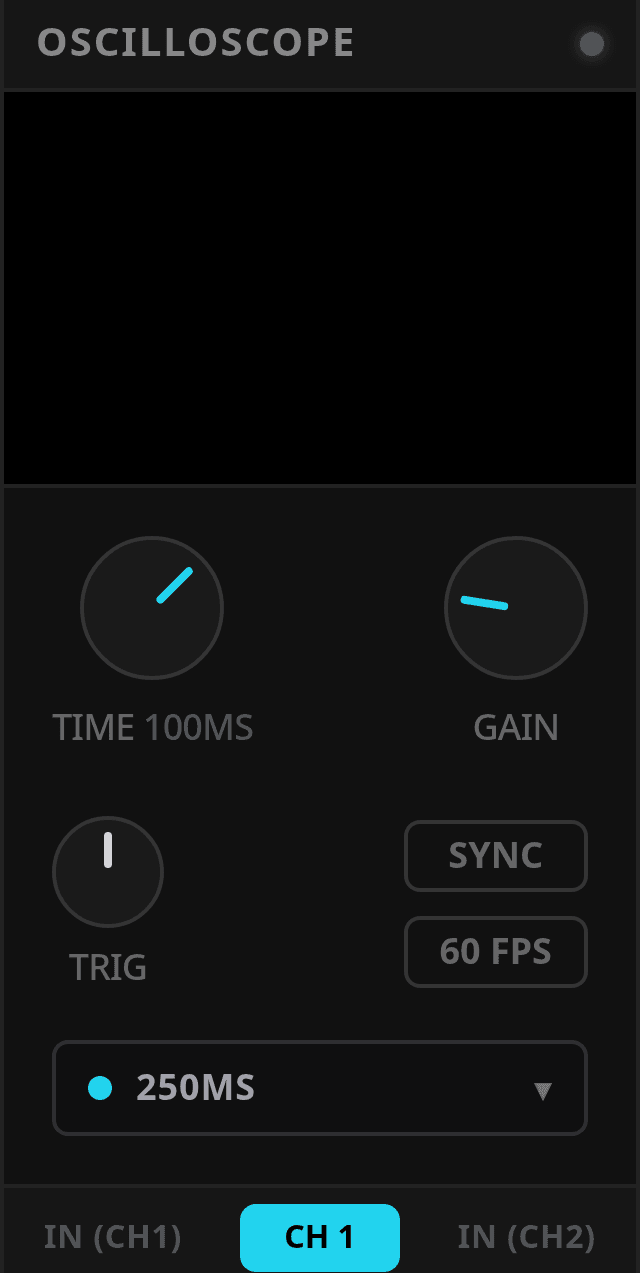

CLICK TO ENLARGE

Quick Overview#

• Two monitor inputs and no outputs.
• View CH 1, CH 2, or BOTH.
• Time window from 1ms up to 1s.
• Span presets tune the analysis window for slow or fast signals.

Inputs#

Port	Type	What It Does
IN (CH1)	Multi	Primary monitored input.
IN (CH2)	Multi	Secondary monitored input.

Scope has no outputs. It is display-only.

Controls Reference#

Control	Values	Default	Behavior
Time	1ms..1s	100ms	Sets the displayed time window.
Gain	0.25..4	1	Scales waveform height on the screen.
Trig	-1..1	0	Sets the trigger level.
Sync	Off, On	Off	Toggles single-cycle style display.
FPS	15, 30, 45, 60, 120	60	Changes display refresh rate.
Span	5s, 1s, 250ms, 50ms	250ms	Selects a preset analysis window range.
CH 1 / CH 2 / BOTH	3-state selector	CH 1	Chooses which input is drawn.

Span Presets#

Span	Intended Use
5s	Slow modulation and LFO shapes.
1s	Mid-speed movement and bass-range content.
250ms	General musical monitoring.
50ms	Fast transients and detailed audio waveforms.

Usage Notes#

• The channel button cycles through CH 1, CH 2, and BOTH.
• In BOTH, the two inputs are overlaid in different colors.
• If nothing relevant is patched to the selected input view, the display idles.
