How Does It Work?#

Lockhart Folder is a hidden, experimental mono wavefolder based on the Lockhart circuit, using cascaded folding cells and a dry/wet mix to build dense harmonics from simple input shapes.

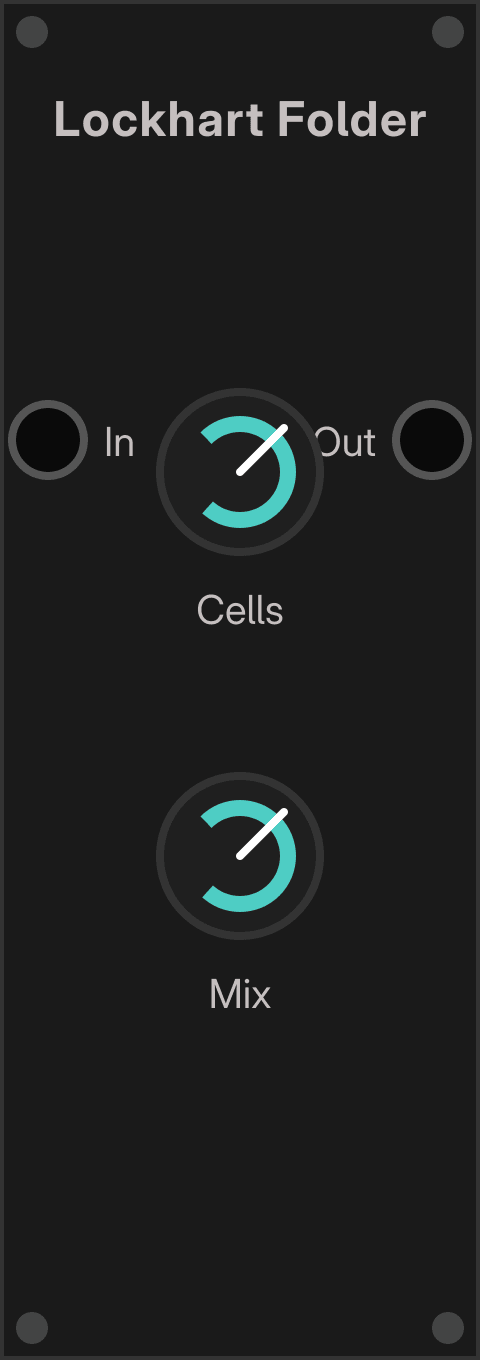

CLICK TO ENLARGE

Quick Overview#

• It is a mono processor with one input and one output.
• Cells changes how many cascaded folding stages are active.
• Mix blends the folded signal with the dry input.
• Internally it uses ADAA-based processing rather than an oversampling toggle.

Inputs And Outputs#

Port	Type	What It Does
In	Audio	Audio input.
Out	Audio	Folded output.

Controls Reference#

Control	Values	Default	Behavior
Cells	1..8	4	Sets the number of cascaded Lockhart folding cells.
Mix	0..1	1	Blends dry and wet signal.

Behavior Notes#

• More Cells means more cascaded folding stages and a denser harmonic result.
• The DSP scales the signal into the cell stack, processes each cell in series, then scales it back up again.
• The wet path is soft-clipped at the output, so high settings stay controlled instead of exploding in level.
• This module is marked experimental and hidden in the current registry.
