How Does It Work?#

Reverb is a premium stereo algorithmic reverb with switchable Hall and Plate engines, NQ and HQ quality modes, and both manual and gate-driven freeze control.

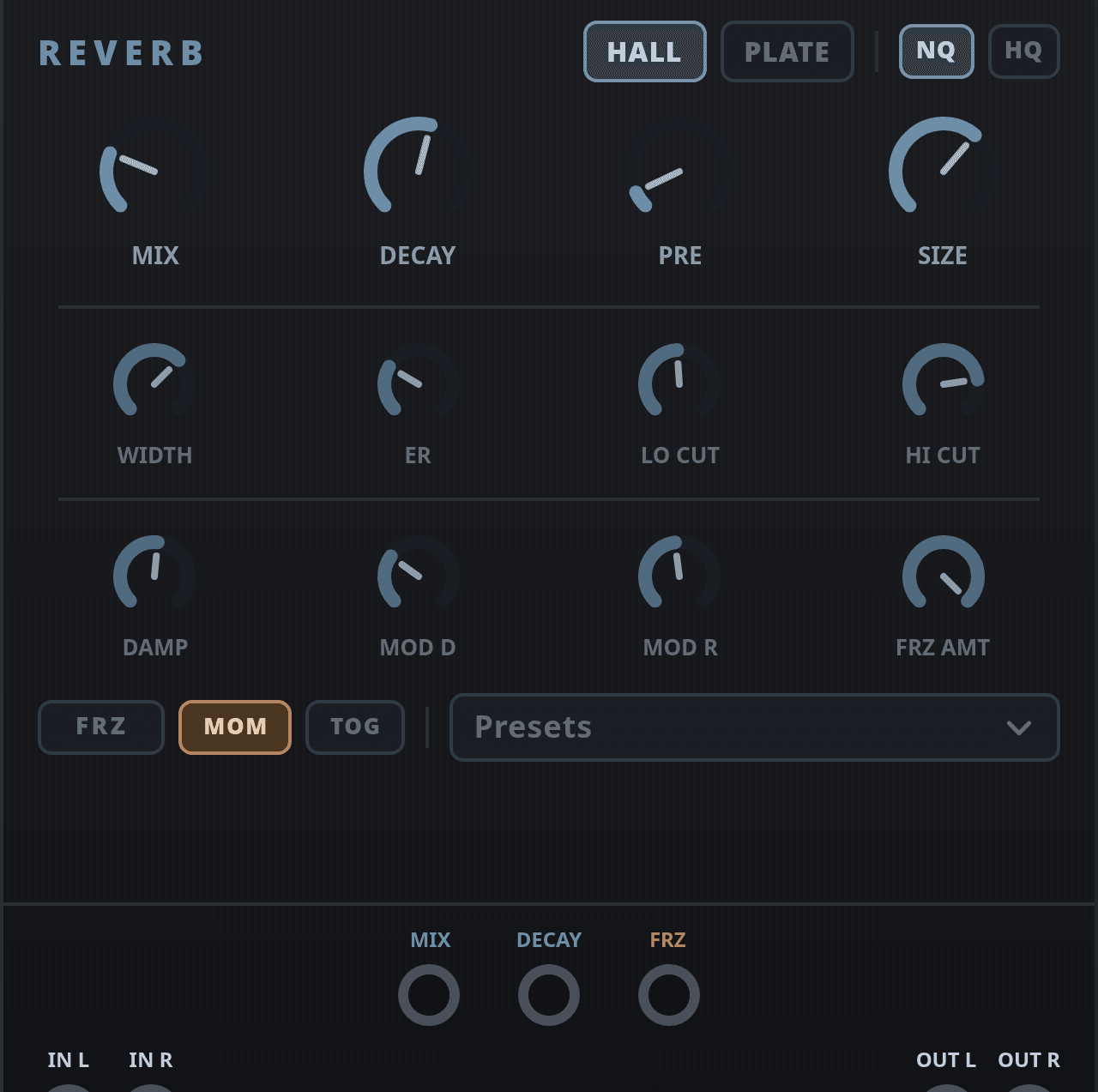

CLICK TO ENLARGE

Quick Overview#

• It is a stereo reverb with stereo inputs and outputs.
• Hall and Plate change the reverb algorithm.
• NQ and HQ change the quality mode.
• Freeze can be triggered from the panel or from the Freeze gate input.
• Mix CV and Decay CV provide performance modulation for the two most important macro controls.

Inputs And Outputs#

Port	Type	What It Does
In L	Audio	Left audio input.
In R	Audio	Right audio input. If unpatched, it follows In L.
Mix CV	CV	Modulates the dry/wet mix.
Decay CV	CV	Modulates decay time.
Freeze	Gate	Triggers freeze behavior according to the selected gate mode.
Out L	Audio	Left reverb output.
Out R	Audio	Right reverb output.

Controls Reference#

Control	Values	Default	Behavior
Algorithm	Hall, Plate	Hall	Selects the reverb engine.
Quality	NQ, HQ	NQ	Selects the quality mode.
Mix	0..1	0.25	Blends dry and wet signal.
Decay	0.2..30 s	3.2 s	Sets the tail length.
PreDelay	0..250 ms	18 ms	Delays the start of the reverb body.
Size	0..1	0.65	Scales the overall room/body size.
Width	0..1.5	1	Sets stereo width.
ER	0..1	0.28	Sets early-reflection contribution.
Lo Cut	20..800 Hz	120 Hz	Removes low end from the reverb path.
Hi Cut	1500..20000 Hz	12000 Hz	Rolls off high end in the reverb path.
Damp	0..1	0.52	Controls high-frequency damping in the tail.
Mod D	0..1	0.3	Sets modulation depth inside the reverb network.
Mod R	0.05..8 Hz	0.55 Hz	Sets modulation rate.
Freeze	Off, On	Off	Manually enables freeze.
Frz Amt	0..1	1	Sets how strongly freeze takes over the tail.
Gate Mode	MOM, TOG	MOM	Chooses momentary or latch-style behavior for the Freeze gate input.

Freeze, Algorithm, And Quality Notes#

• Hall and Plate are distinct engines, not just EQ variants.
• NQ runs a reduced line set, while HQ enables the full network.
• Freeze can come from the panel button or the Freeze gate input.
• MOM follows the incoming gate state. TOG flips the frozen state on each rising edge.
• Frz Amt is useful when you want freeze to be part of the texture rather than a full hard hold.

Panel Presets#

The panel also includes a preset dropdown with these authored starting points:

• Airy Hall
• Tight Plate
• Vocal Plate
• Wide Ambient
